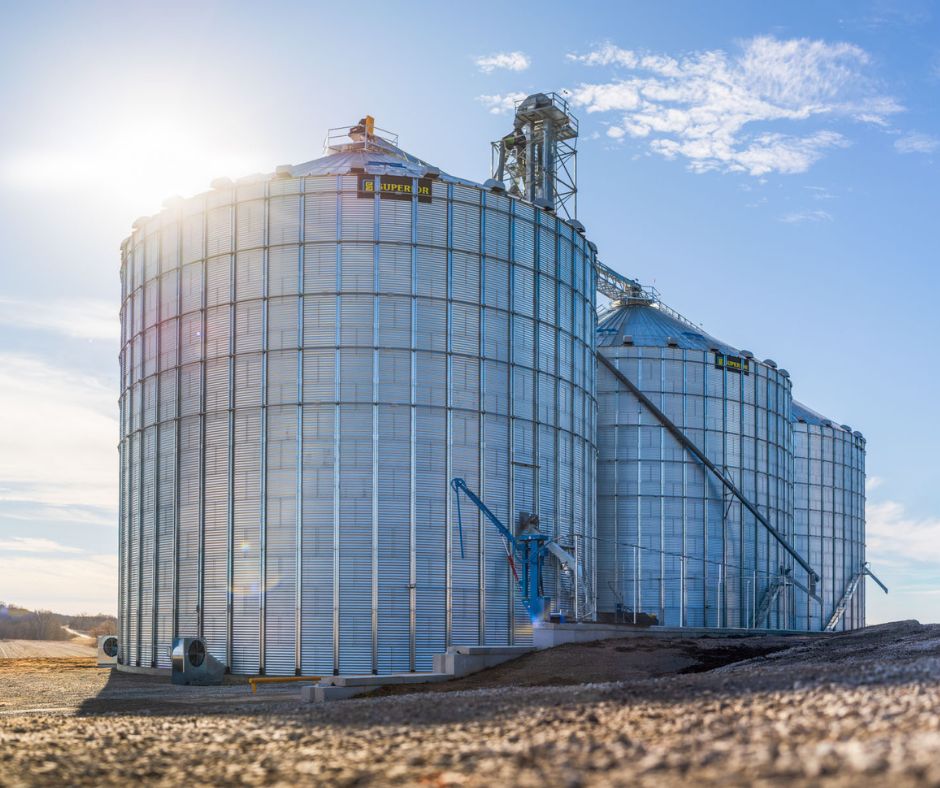

Commercial Grain Storage Bins

60 – 105′ Diameters

Request A Quote

Bigger Demands Deserve Stronger Protection

When your operation demands more, Superior commercial bins deliver. Engineered for high capacity, customized to your needs, and built to extend the life of your entire grain system.

  • Capacities up to 817,000 bushels
  • Built with grade 55 steel that has a tensile strength of 70,000 psi.
  • Built to stand-up to the biggest loads & toughest weather.
  • 44-inch corrugated sidewall sheets increase vertical load strength.

Commercial Grain Bin Features

Build Strength

  • Superior commercial bins are built with Grade 55 steel for high strength and coated with G-90 galvanization for corrosion resistance.
  • All bins use 3/8-inch sidewall bolts and JS500 Grade 8.2 bolts, which are seven times more corrosion-resistant than standard bolts.
  • Superior’s laminated stiffeners are roll formed for a perfect fit.
  • Each bin includes a pre-rolled base angle with a foam gasket to seal out moisture and comes with a lifetime bottom ring warranty.

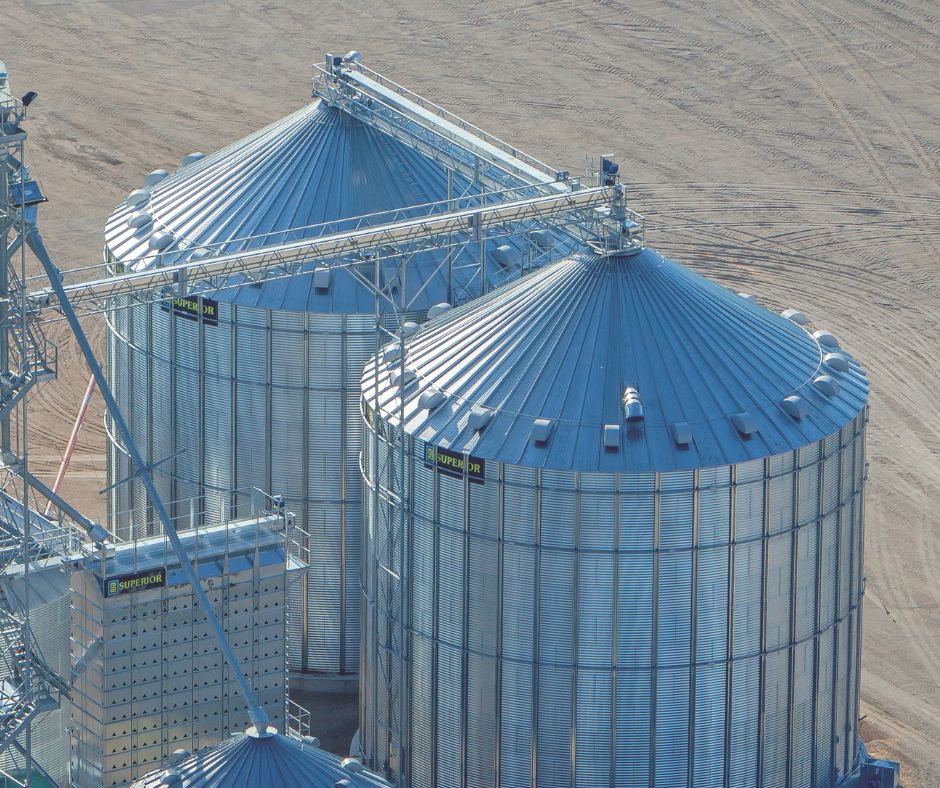

Structured Roof

  • Superior commercial structured roofs are built to support a peak ring load of up to 50,000 pounds.
  • Rigidized 3-1/2-inch roof ribs lock into a wind ring for added strength, and corrugated flat panels with drip edges enhance durability.
  • Moisture is kept out by UV-resistant roof vents with raised ridges, while a continuous eave angle evenly distributes roof load.
  • Wind rings and triple-break peak rings ensure structural integrity and reliable weather protection.
Roof Options

Exterior Access

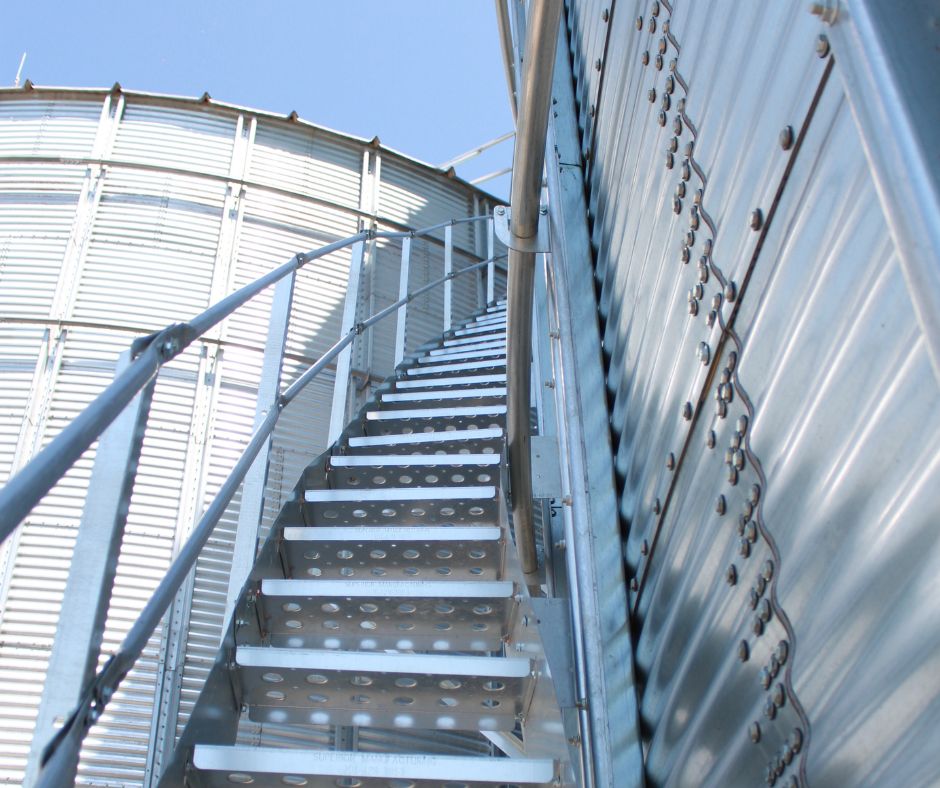

  • Bin stairs provide secure access to the bin’s eave. Galvanized stairways with adjustable treads will stand up to the elements and ensure safety for years.
  • A 34-by-60-inch platform, the largest in the industry, comes standard with stair packages.
  • Optional peak walk-around platforms add security and provide ample room for performing service.
  • A roof ladder is standard on all Superior bins. For additional safety, an optional roof ladder handrail is available.
  • Superior commercial bin doors feature a heavy-duty, bolted construction for strength and reliability.
Bin Access

Herculok Floors

  • Superior’s Herculok floors use an interlocking design with locking tabs and are formed without removing steel for added strength.
  • Herculok Z-support features multiple deep rib supports for increased strength and stability.
  • Heavy-duty floors are available on Superior Commercial Bins up to 75′ diameter, with a maximum eave height of 66′.
  • Optional welded support available for higher grain depths and in-floor aeration trough.
Herculok Floors

Unload & Power Sweep Systems

  • Superior’s 11-inch U-trough unloads up to 6,000 bushels per hour without damaging grain.
  • Hinged discharge covers latch open for use and closed for protection.
  • Rack-and-pinion gates with roller bearings allow easy sump operation.
  • An independent next-to-center sump provides a backup if the center sump plugs.
  • Double flighting increases unload capacity, and a 16:1 gear reduction drives the sweep through grain efficiently.
Unload Systems

Specifications

Loading grain bins data...

Brochures & Resources

Brochures & Manuals

Commercial Bin Brochure

Farm Bin Operators Manual

Commercial Bin Operators Manual

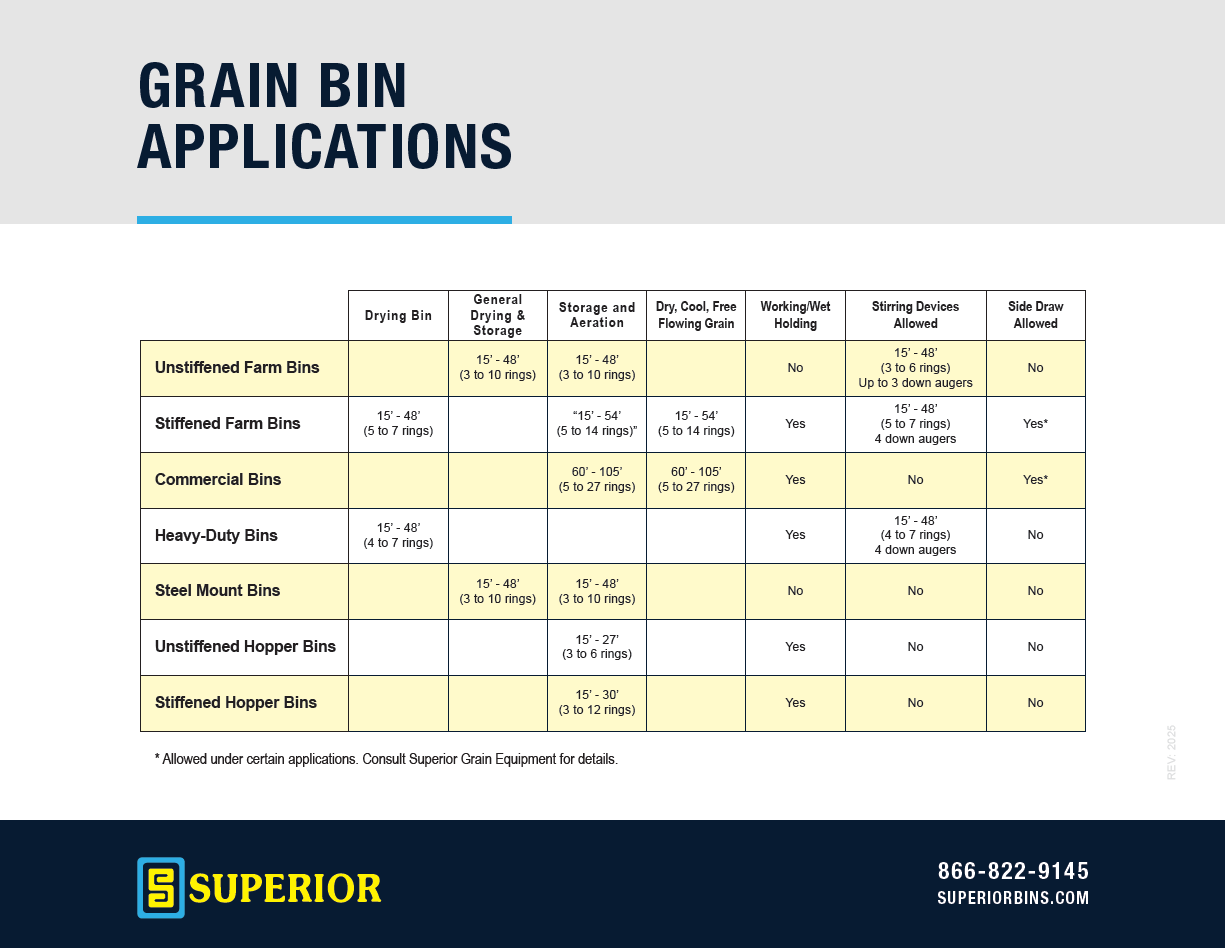

Commercial Bin Applications

Bin Maintenance & Safety

Bin Safety

Bin Safety

Bin Troubleshooting

Bin Troubleshooting

Bin Maintenance

Bin Maintenance

Customer Site Preparation

customer grain bin ground preparation requirements

Bin Site Prep Requirements

Bin Accessories

Herculok Floors Handout

Herculok Floors Handout

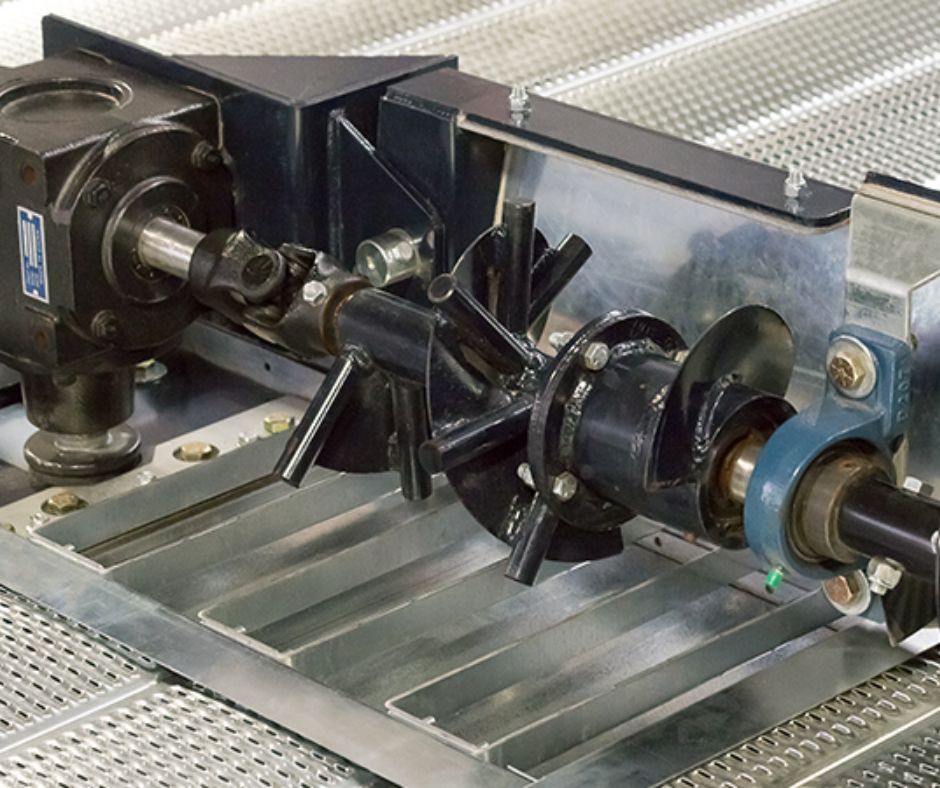

Unloading Systems – Block Buster Auger

Unloading Systems – Block Buster Auger

Commercial Projects

Diagonal, Iowa
Walhalla, North Dakota
Orwell, Ohio
Greenback, Tennessee
Swartberg, South Africa
Foreman, North Dakota

Commercial Bin FAQ

What is Superior's largest commercial bin size?

Superior manufactures grain bins up to 105′ in diameter with maximum storage capacity of over 817,000 bushels per bin.

What is Superior's roof peak ring load?

All Superior commercial structured roofs are built to support a peak ring load of up to 50,000 pounds.

Does Superior offer site design services?

Superior provides site design services to help you plan, visualize, and build a system tailored to your operation. With a customized layout, you’ll maximize efficiency, get more from your equipment, and extend the life of your entire facility.

Built for Harsh Climates. Backed for Life.

Superior bins are engineered to withstand high winds and heavy snow – backed by exceptional service and one of the industry’s strongest warranties.
